Description:

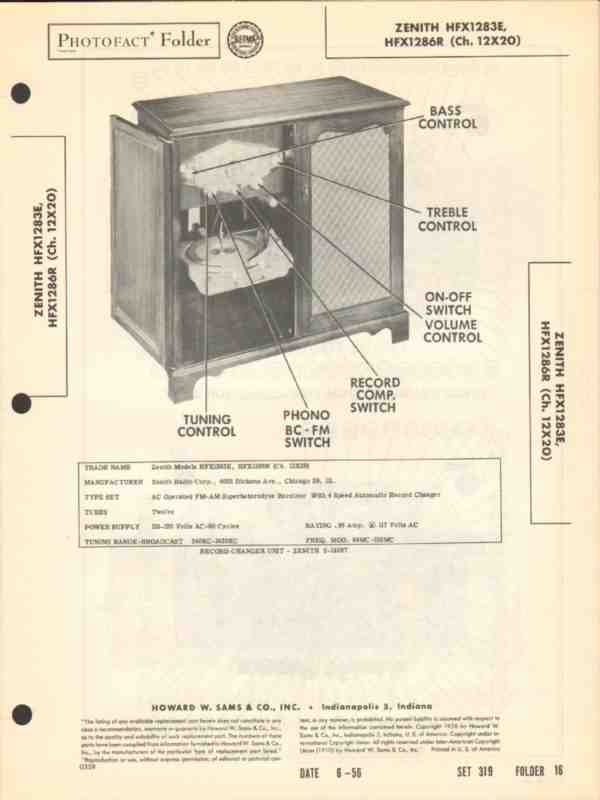

Vintage ZENITH models HFX1283E and HFX1286R (chassis 12X20) combination 12 tube Superheterodyne AM FM radio receiver with 4 speed automatic record changer phonograph. Original old Sams Photofact manual includes schematic, layout, alignment instructions, voltage & resistance test chart, repair parts list and description. 10 pages. Dated 1956. This manual would make a sensational accompaniment to your classic radio phono equipment.

Category: Phono Service Manuals
Product Code: 0831916
Brand:: Zenith
Availability: In Stock
Dimensions: 11in  x  8in
Views: 23

$9.99  $7.49
Qty:1

Save: -$2.50 (25% off)
